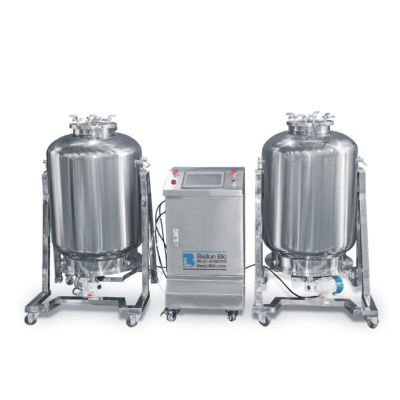

BLBIO CIP Process Clean In Place CIP Process Clean

Categories	CIP System Bioreactor Fermenter For Microbial Cell Culture
Brand	BAILUN bio Bioreactor and Fermenter Manufacturer
Model	BLBIO-GJAV
Weight	300KG
Warranty	1 Year
Machinery Capacity	5L~200KL
Machinery Test Report	Provided
Warranty of core components	1 year
Core Components	Gearbox, Motor, Gear, Pump, Pressure vessel, PLC,
Key Selling Points	Automatic
Marketing Type	New Product 2024
Video outgoing-inspection	Provided
Processing	Fermenting Equipment
Terms of Payment	L/C, D/A, D/P, Western Union
Download
Update Time	Dec 22,2024

Contact Now

Favorites

Detail Information

Parameter	Description
Total volume	10L,15L,20L,30L,50L,70L,100L,200L,300L,500Letc.
Working volume	30%~70%
Tank	Diameter: Hight ratio 1:2to3, Tank made by SUS316L stainless steel. Jacket is SUS304 stainless steel.

Stirring system	Mechanical sealing system : high-powered stirring oar, anti-foam oar; AC electrical machine: infinite speed variation; rpm in the fermenter: 50~1000 rpm±1%,The height of the stirring oar can be adjusted
Sterilization	Sterilize in place(SIP), auto control by program
Clean	Clean in place (CIP) by spray ball
Gas control	Control by rotor meter, air flow 1 vvm

Feeding	Automatically feeding by peristaltic pump
Anti-foam control	Automatically add antifoam by peristaltic pump
Temperature control	Heat by thermostatic water tank and circulate by circulating pump(Grundfos, Denmark), auto control (cooling water+5℃) to 65℃±0.1℃,temperature probe(PT100)
PH control	2.00-12.00±0.05pH, autocontrol by adding acid and base, pH sensor (Mettler, Switzerland) and shielding lead (Mettler, Switzerland). fermenter is autocontrolled with peristaltic pump

Do control	0-150±3% displaying precision 0.1%, sensor (Mettler/Hamilton, Switzerland) and shielding lead(Mettler/Hamilton, Switzerland)
Sampling	Sampling valve, can sterilization separately, manual
Harvest	Zero dead zone bottom valve(Gemu/Burket,Germany), can sterilization separately, manual/auto
Lid lift system	30L-500L have lid lift system, 700-1000L have human hole.

Innoculation	4 valves group or pin in with flam protection
Pressure	Auto control, BD Germany pressure transmitter or Lambert differential pressure liquid level gauge.
Exhaust	Have condenser before exhaust, control by diagram valve / Proportional control valve.
Control parameters	10in touch screen, Siemens PLC control system with control parameters (stirring, pH, DO, temperature, feeding, gas etc.), data analysis, data logging, data output and printing, overrun alarm, language switching and other functions
Optional configuration	O2/N2/CO2 gas control, Level sensor, OD sensor, Turbidity sensor, ORP sensor, Weight system, Live cell sensor etc.

PRODUCT RANGE

1, CIP Process Clean from mini 0.2L to 40L,

2, Stainless steel fermenter for reasearch-pilot-industry like 2L-500L-5000L-500KL.

3, Relative device: Steam generator, Chiller, Air compressor, Tubular centrifuge, Disc centrifuge, Shaker,etc.

FERMENTER / BIOREACTOR APPLICATION :

1, Animal vaccine production: Avian influenza vaccine, Porcine PRRS vaccine, Foot-and-mouth disease, Rabies vaccine, Mink vaccine, DTP vaccine, Diphtheria vaccine, Tetanus vaccine, etc.

2, Human vaccine production: Diphtheria vaccine, Diphtheria vaccine, Tetanus vaccine, Meningitis vaccine, Pneumonia IV vaccine, Hepatitis B vaccine, etc.

3, Culture for microorganism (bacterial,fungi,yeast.etc), mammalian cell, plant cell, algae, enzyme, protein, additives, antibiotics etc.
