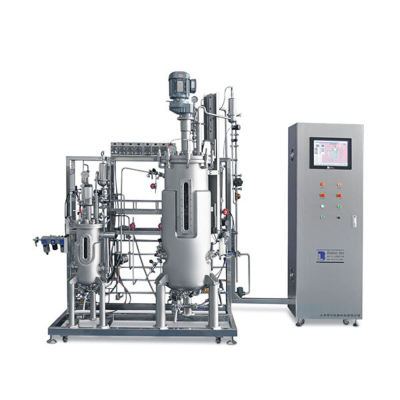

BLBIO Laboratory Stainless Steel Bio Fermenter laboratory bioreactor

Categories	Small Scale Methanol Plant For Laboratory Multi Bioreactor Pressure Fermentation
Brand	BAILUN bio Bioreactor and Fermenter Manufacturer
Model	BLBIO-GJAV
Weight	300KG
Warranty	1 Year
Machinery Capacity	50L-50000L
Machinery Test Report	Provided
Warranty of core components	1 year
Core Components	Gearbox, Motor, Gear, Pump, Pressure vessel, PLC,
Key Selling Points	Automatic
Marketing Type	New Product 2024
Video outgoing-inspection	Provided
Processing	Fermenting Equipment
Terms of Payment	L/C, D/A, D/P, Western Union
Download
Update Time	Dec 22,2024

Contact Now

Favorites

Detail Information

Parameter	Description
Total volume	5L,10L,15L,20L,30L,50L,100L,200L,500L,1000L, 5KL, 50KL, 200KL etc.
Working volume	30%~70%
Tank	Jacket tank, made by SS316 and SS304, tank design pressure 0.3Mpa, jacket design pressure 0.35Mpa, polishing 0.4-0.6um, ratio of diameter and height is 1:2.2-2.5

Stirring system	Mechanical drive on the top/bottom or Magnetic drive on the top, 3pcs height adjustable six-blade paddle Stir speed: 50~1000rpm/50-400rpm
Sterilization	Sterilize in place(SIP), auto control by program
Clean	Clean in place (CIP) by spray ball
Gas control	Control by rotor meter, air flow 1 vvm

Feeding	Automatically feeding by peristaltic pump
Anti-foam control	Automatically add antifoam by peristaltic pump
Temperature control	Auto-control, electric heating range: water source add 5℃ to 70℃
PH control	PH 2.00-12.00±0.05, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland.

Do control	0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen.
Sampling	Sampling valve, can sterilization separately, manual
Harvest	Zero dead zone bottom valve(Gemu/Burket,Germany), can sterilization separately, manual/auto
Lid lift system	30L-500L have lid lift system, 700-1000L have human hole.

Innoculation	4 valves group or pin in with flam protection
Pressure	Auto control, BD Germany pressure transmitter or Lambert differential pressure liquid level gauge.
Exhaust	Have condenser before exhaust, control by diagram valve / Proportional control valve.
Control parameters	10in touch screen, Siemens PLC control system with control parameters (stirring, pH, DO, temperature, feeding, gas etc.), data analysis, data logging, data output and printing, overrun alarm, language switching and other functions
Optional configuration	O2/N2/CO2 gas control, Level sensor, OD sensor, Turbidity sensor, ORP sensor, Weight system, Live cell sensor etc.

PRODUCT RANGE

1, laboratory bioreactor from mini 0.2L to 40L,

2, Stainless steel fermenter for reasearch-pilot-industry like 2L-500L-5000L-500KL.

3, Relative device: Steam generator, Chiller, Air compressor, Tubular centrifuge, Disc centrifuge, Shaker,etc.

FERMENTER / BIOREACTOR APPLICATION :

1, Animal vaccine production: Avian influenza vaccine, Porcine PRRS vaccine, Foot-and-mouth disease, Rabies vaccine, Mink vaccine, DTP vaccine, Diphtheria vaccine, Tetanus vaccine, etc.

2, Human vaccine production: Diphtheria vaccine, Diphtheria vaccine, Tetanus vaccine, Meningitis vaccine, Pneumonia IV vaccine, Hepatitis B vaccine, etc.

3, Culture for microorganism (bacterial,fungi,yeast.etc), mammalian cell, plant cell, algae, enzyme, protein, additives, antibiotics etc.
