Vessel
l The volume is 5~1000L, which can be customized freely.
l SUS316L stainless steel material, internal polishing accuracy is less than 0.4um to reduce bacterial contamination.
l Jacketed water is electrically heated and circulated,which has good heat exchange efficiency.
l Equipped with a customized stirring system, mechanical or magnetic stirring, and different types of stirring paddles can be replaced.

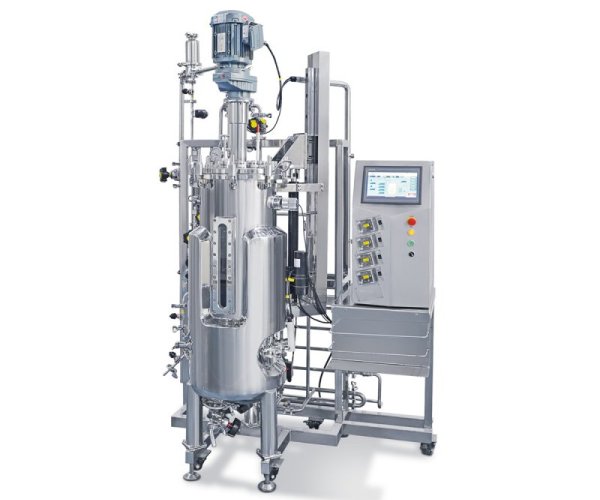

stirred tank bioreactor
Controller
l 10″ touch screen, easy to understand and use.
l Controller combines measurement and control hardware for excellent process control.
l With external chiller for optional, you don't have to worry about finding a suitable cooling water source for your fermentor.
l The large volume vessel can be connected to the CIP cleaning station, and there is no need to worry about cleaning.
Control System
l With mature, stable, universal Siemens PLC control system to realize automatic control.
l With the functions of real-time display, data recording, data analysis, output printing, password management, abnormal analysis, overlimit alarm, etc.
l With USB interface, and data can be copied directly by USB.
l Running modes:
Manual control: You can open valve or set the percentage of valve opening.
Automatic control: You can select continuous or PID control the switch.
Sequence control: The control of all parameters can be pre-set at least 10 control sections.
Automatic segmentation remotely control: PC control.
Related control: Rotating speed & dissolved oxygen, gasing & dissolved oxygen, feeding & pH, etc.
